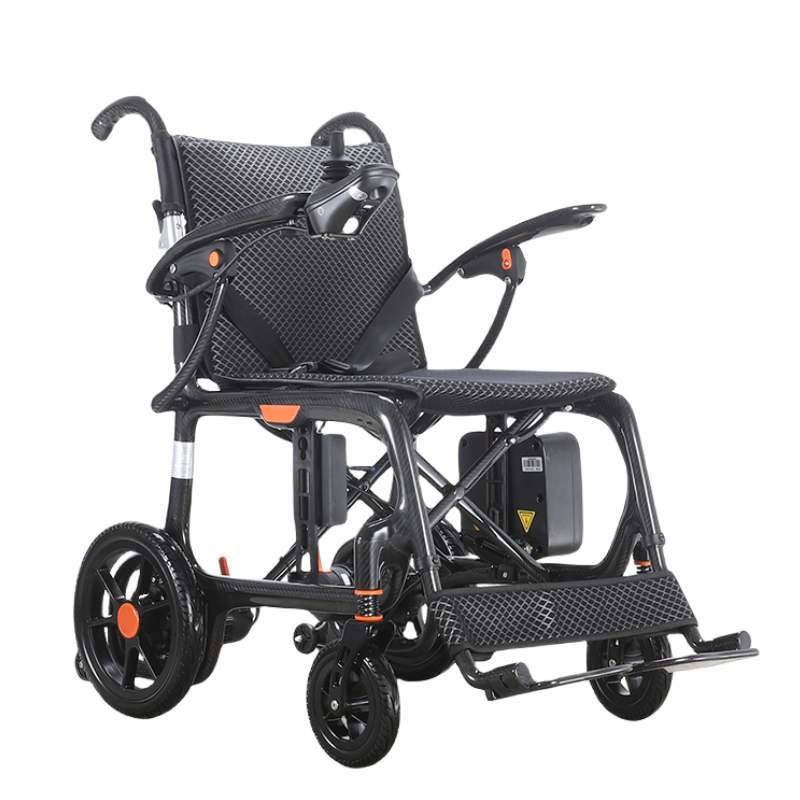

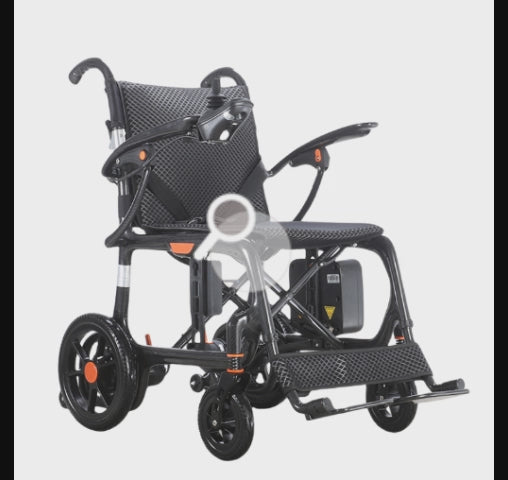

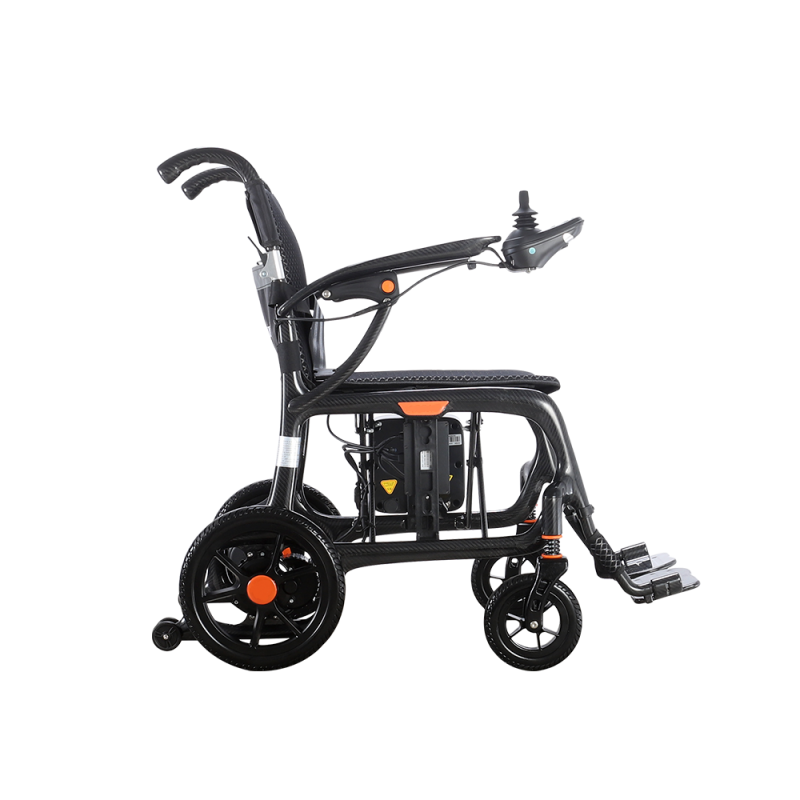

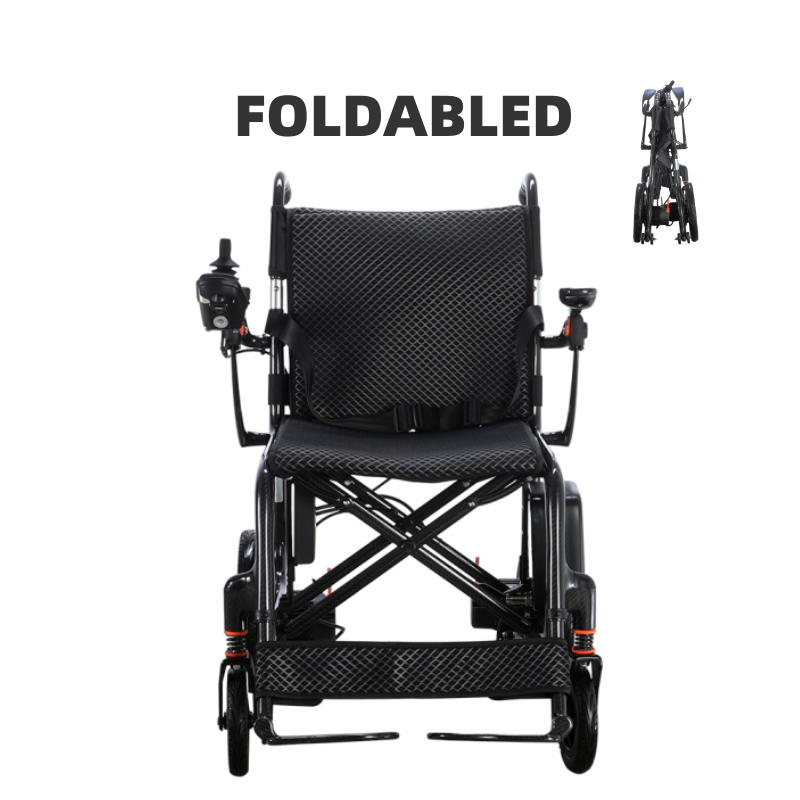

XFGN18-209 Carbon Fiber Electric Wheelchair Lightweight Foldable For Disabled
XFGN18-209 Carbon Fiber Electric Wheelchair Lightweight Foldable For Disabled
Model | XFGN18-209 |
Frame | Carbon Fiber |
Motors | 24V/ 180W*2 (Unite Brushless) 200W*2 |
Battery | 24V12Ah (Lithium) |
Controller | Joystick (Yaton Brushless) |
Charger | 24V 3A |
Weight Capacity | 100kg |
Charge time | 3-5h |
Max. forward speed | 4.5km/h (optional) |
Max. backward speed | 1.8km/h (optional) |
Mini Turning radius | 87cm |
Climbing capability | 6° |
Driving Range | 20km( 12ah) |
Ground clearance | 30mm (Motor) |
Front Tyres | 7inch 165mm × 30mm PU solid Magnesium alloy rim |
Rear Tyres | 11inch 277mm × 35mm PU solid, Magnesium alloy rim |
Gross Weight | 19.5kg |
Net Weight | 13.8kg (Without battery) |
Battery Weight | 2.2kg (12Ah) |
Dimensions | 930*560*870mm |
