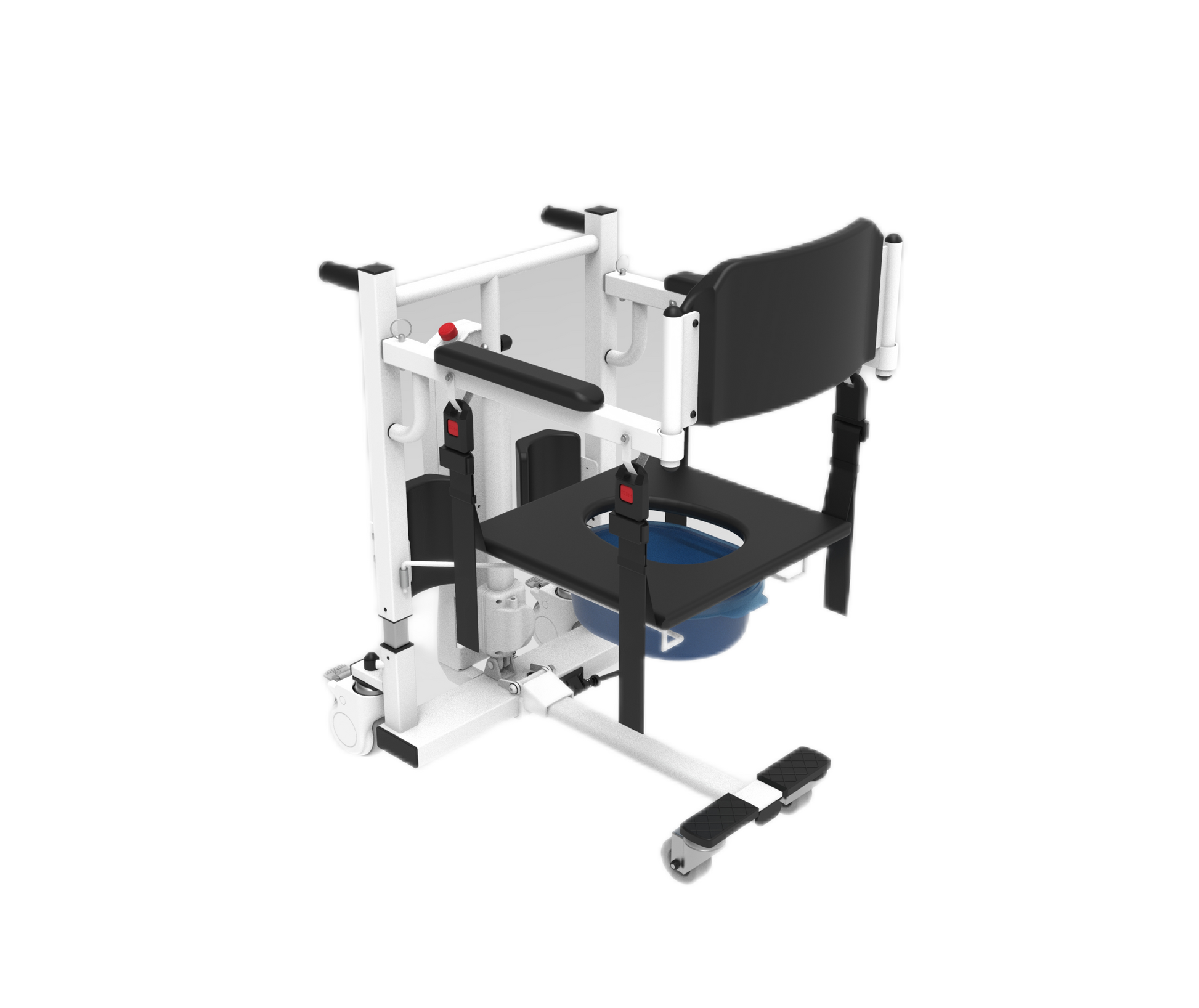

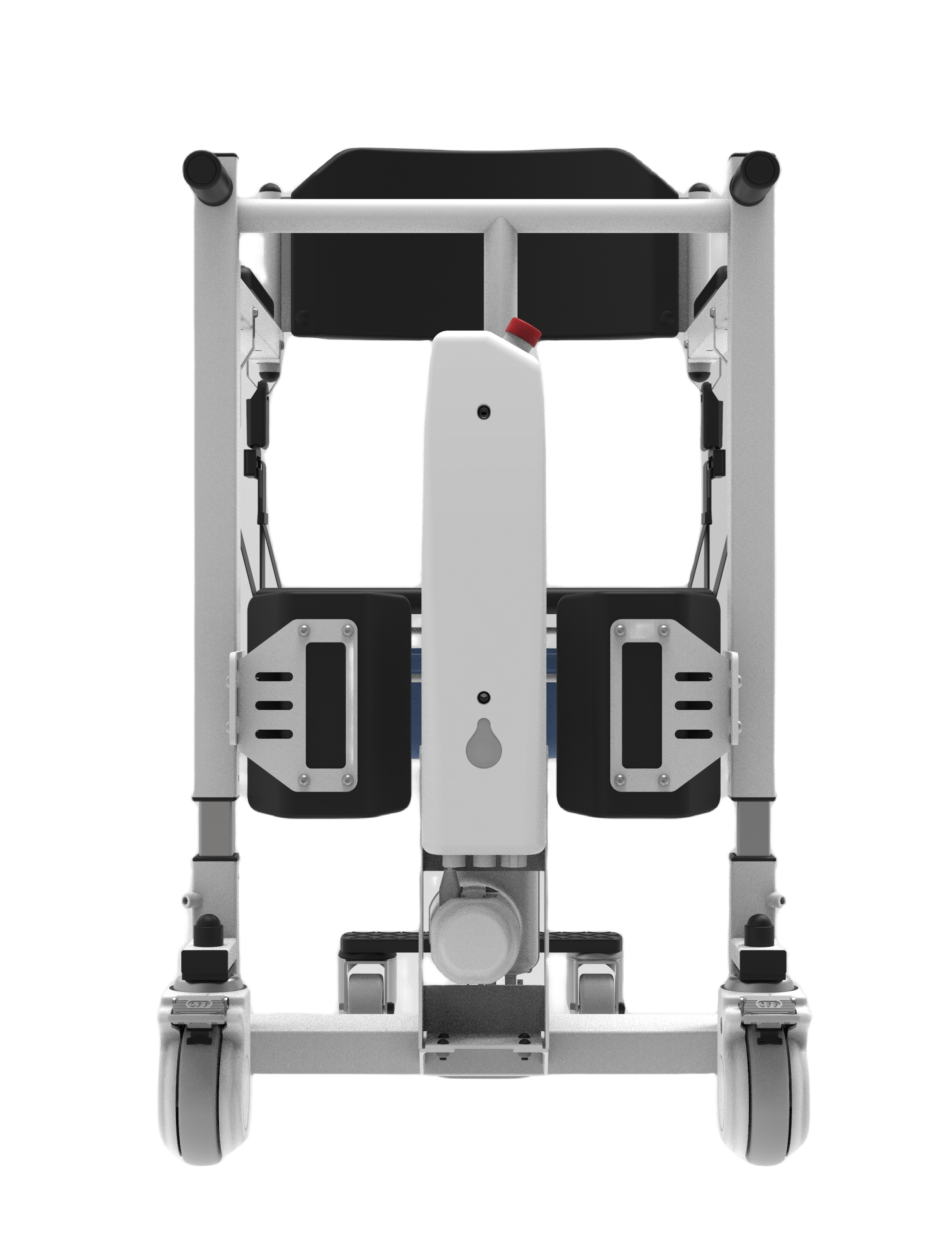

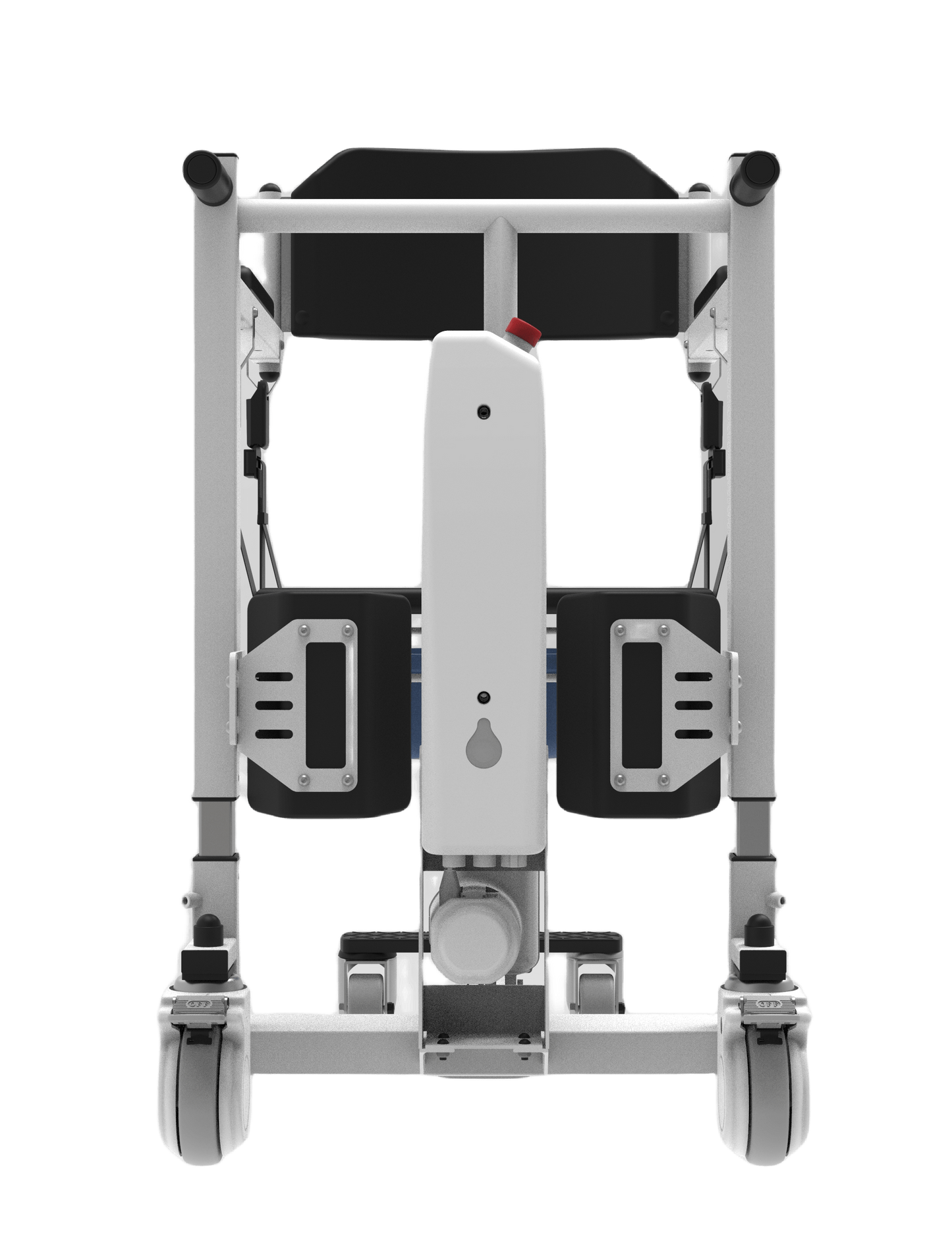

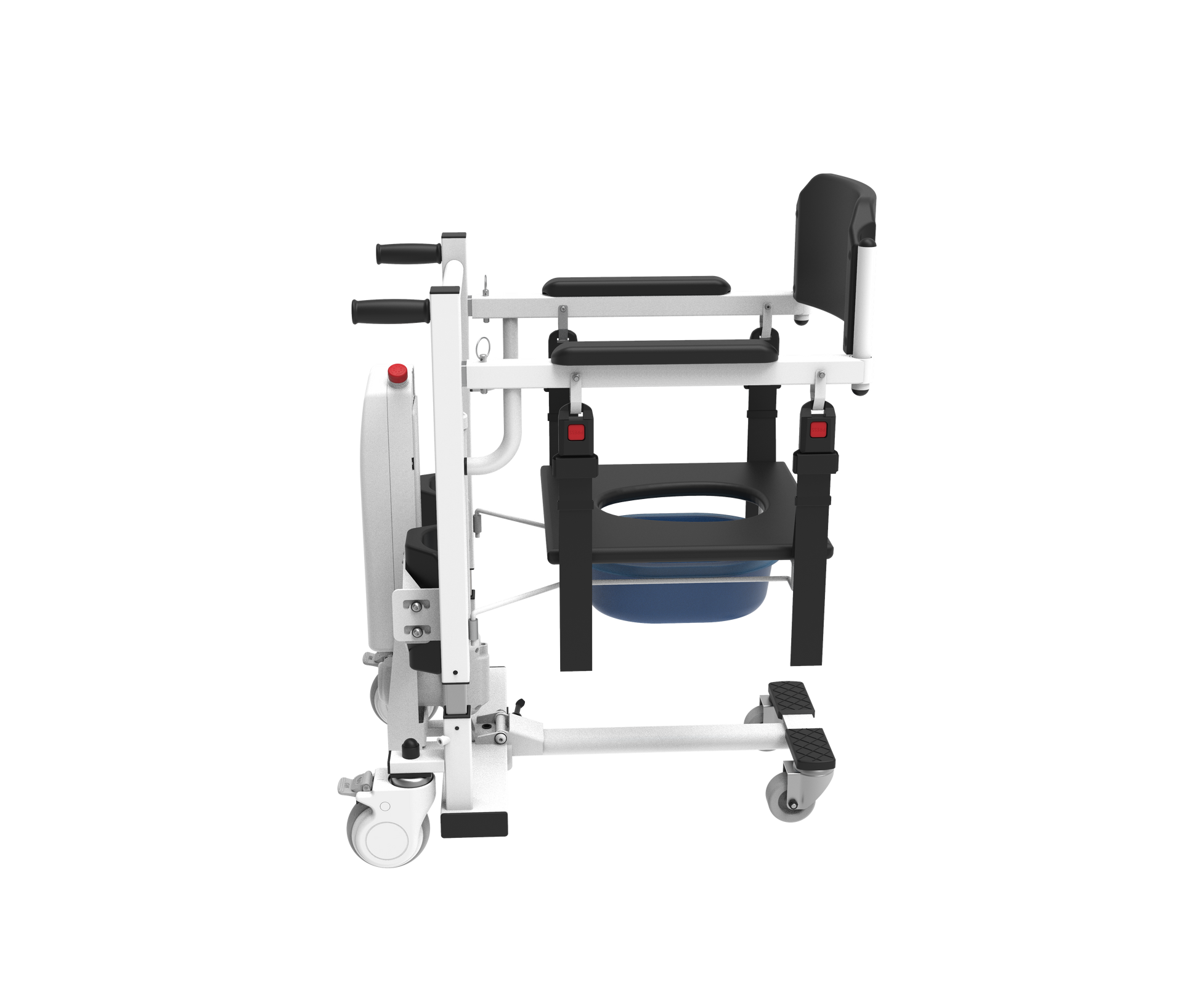

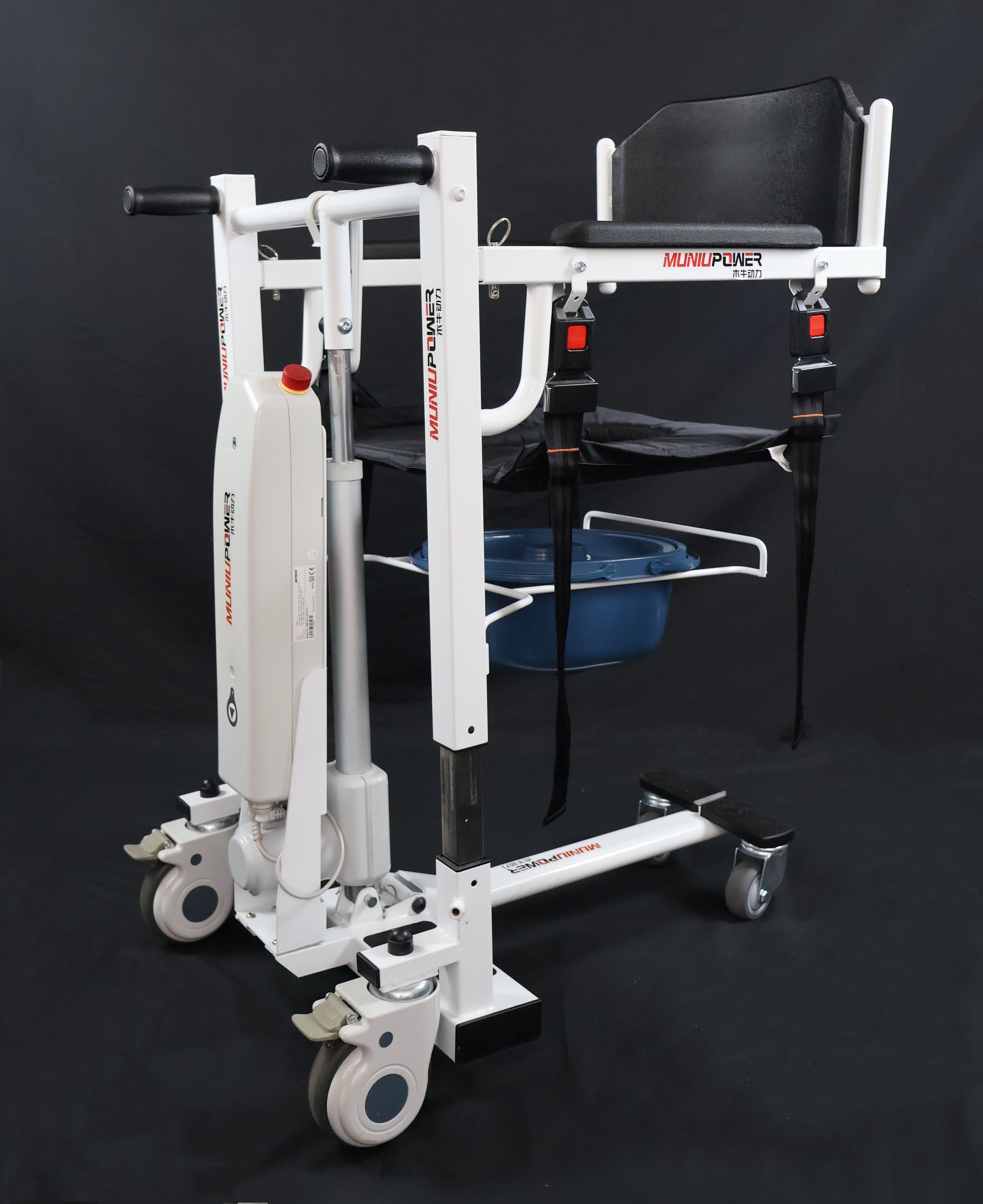

Features

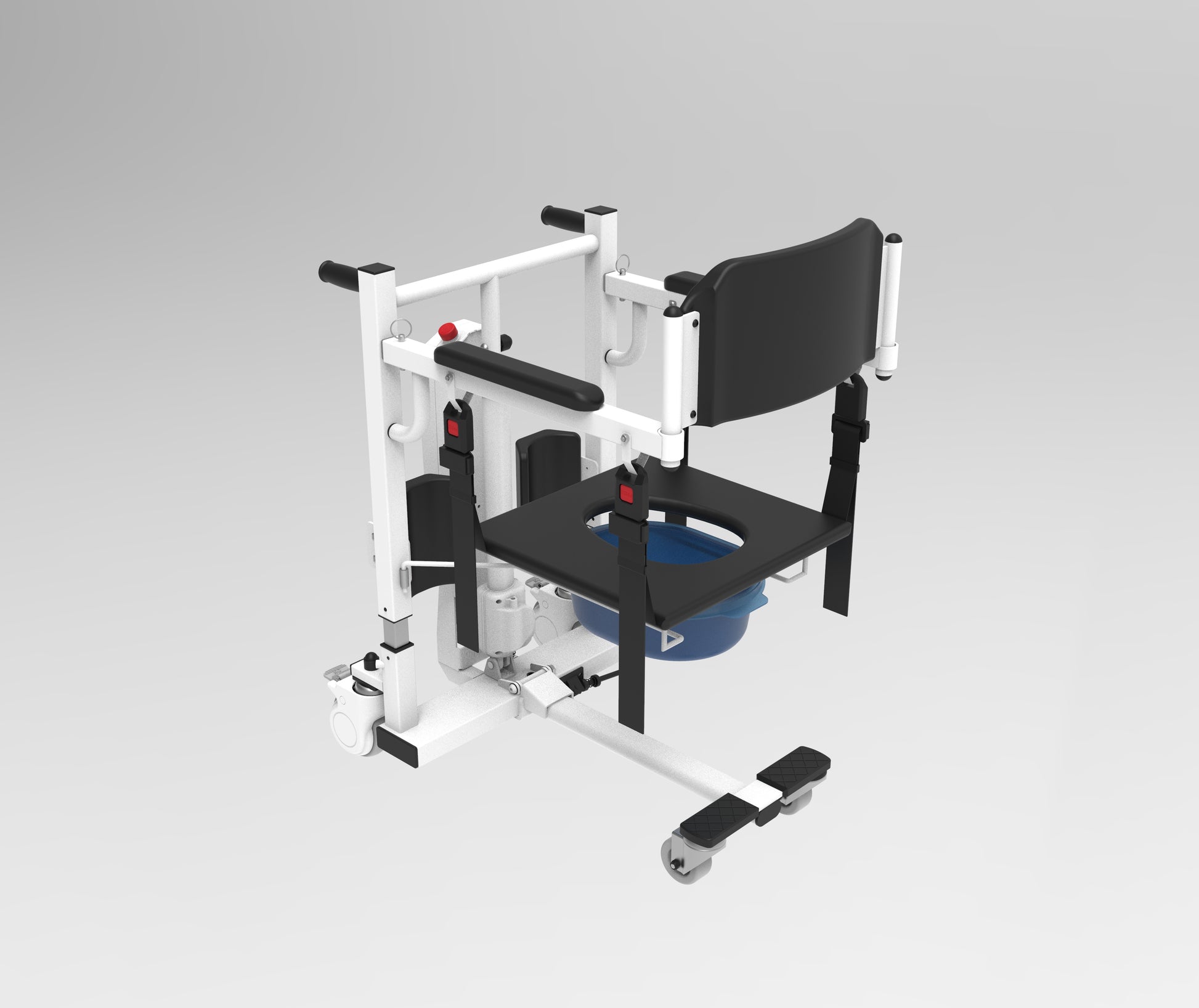

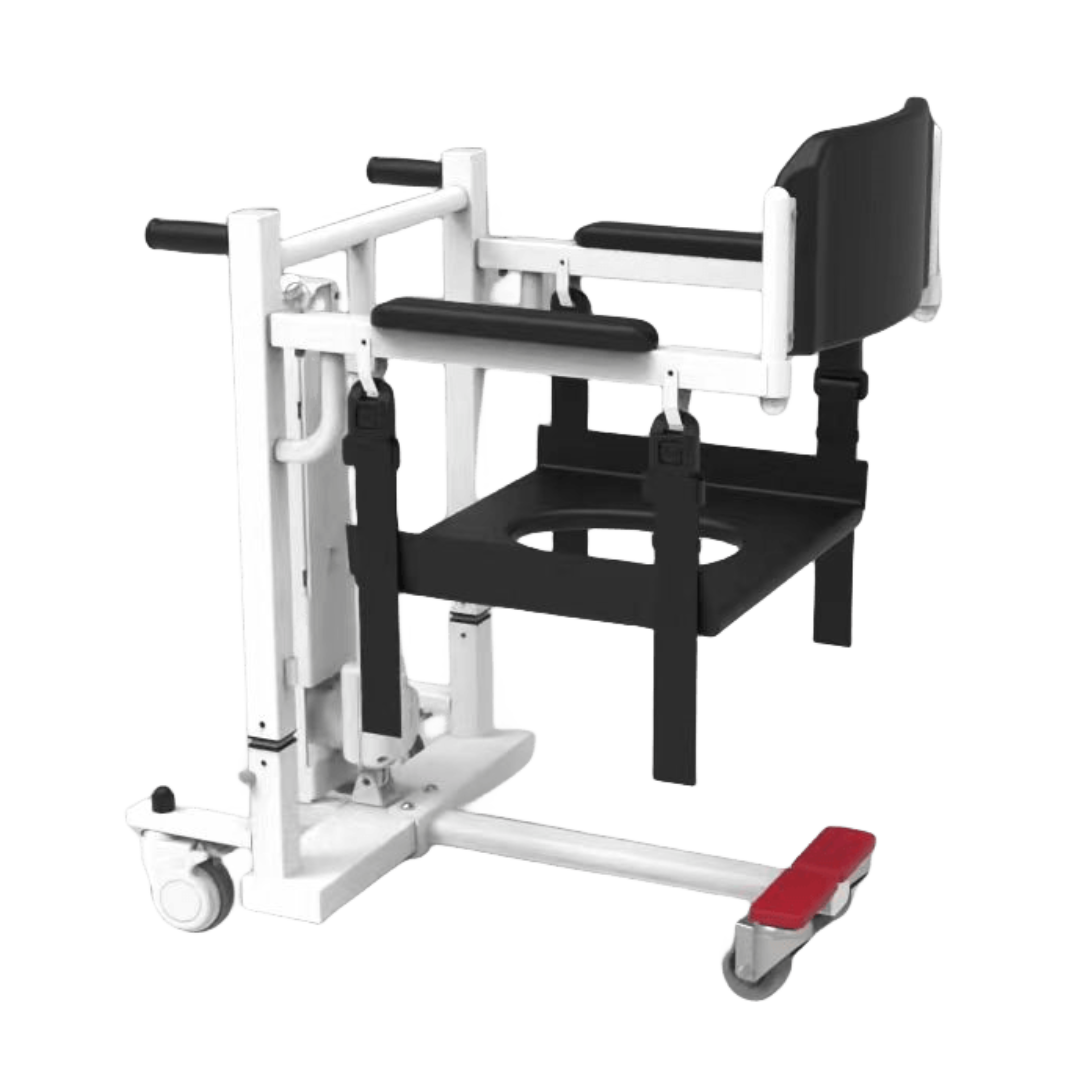

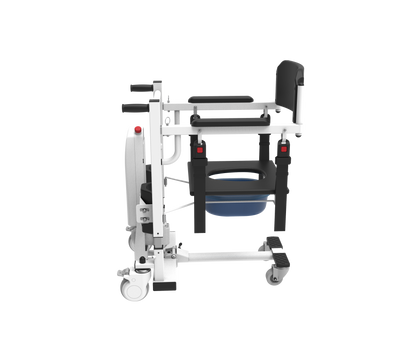

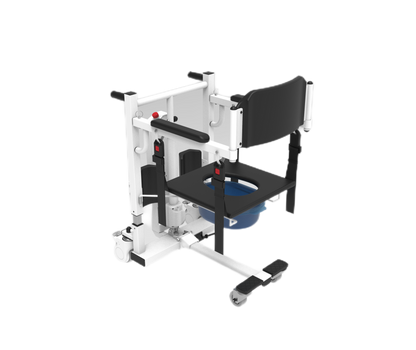

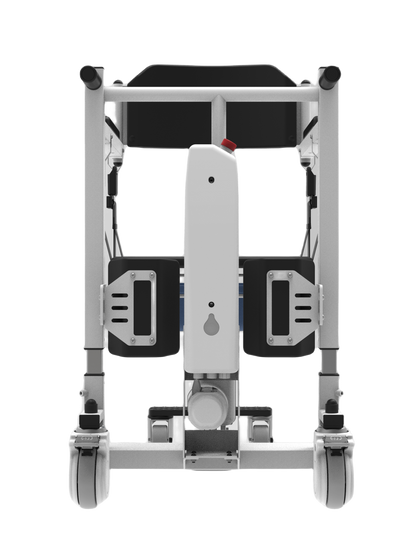

1. Robust Frame: The lift has a sturdy, metal frame that provides stability and durability, ensuring safe and reliable operation.

2. Adjustable Seat: The seat appears to be adjustable and is designed to support the patient securely. The seat also includes safety straps for additional security during transfers.

3. Comfortable Padding: The armrests and backrest are padded, offering comfort to the patient during use.

4. Wheels with Brakes: The lift is equipped with wheels, making it easy to maneuver. At least one of the wheels has a brake, ensuring the lift can be securely locked in place during transfers.

5. Toilet Accessibility: The seat has an opening, suggesting that the lift can be used for toileting purposes. This design feature allows patients to be transferred to and from the toilet without needing to remove them from the lift.

6. Foot Support: The lift includes footrests to provide additional support and comfort for the patient’s feet during transfers.

7. Electric Controls: The presence of electric controls suggests that the lift’s movements (raising and lowering) can be electrically operated.

8. Compact Design: The lift has a compact and foldable design, making it easy to store and transport when not in use.

These features make the patient lift suitable for various patient transfer tasks, such as moving patients from bed to wheelchair, wheelchair to toilet, and other similar activities. The design prioritizes patient safety, comfort, and ease of use for caregivers.

Specification

Overall size: 843x550x800mm
Net weight: 35 Kg
Lifting range: 0~250mm
Lifting speed: 7.6mm/s
Motor: DC24V actuator motor
Charger: AC220V/50Hz
Loading capacity: 150Kg Max
Noise: 65（dB）
Rated power: 100~240Vac 50/60Hz 72VA
Voltage: DC 24V±1
Storage temperature: －5~50℃
Work temperature: 5~40℃
Relative humidity: <=85％RH
Barometric pressure: 86~106kPa
Waterproof: IPX4
Lifting times per full charge: 60 Times

1. With Folding frame, "T" base suitable for all of kinds of whelchairs and chairs.
2. Plug-in safety buckle more convenient.
3. Taiwan Motech motor, The maximum load up to 150 KG.
4. Waterproof design for shower.
5. 2 pcs cushions, 1x Hard cushion with hole, 1x soft cushion without hole.

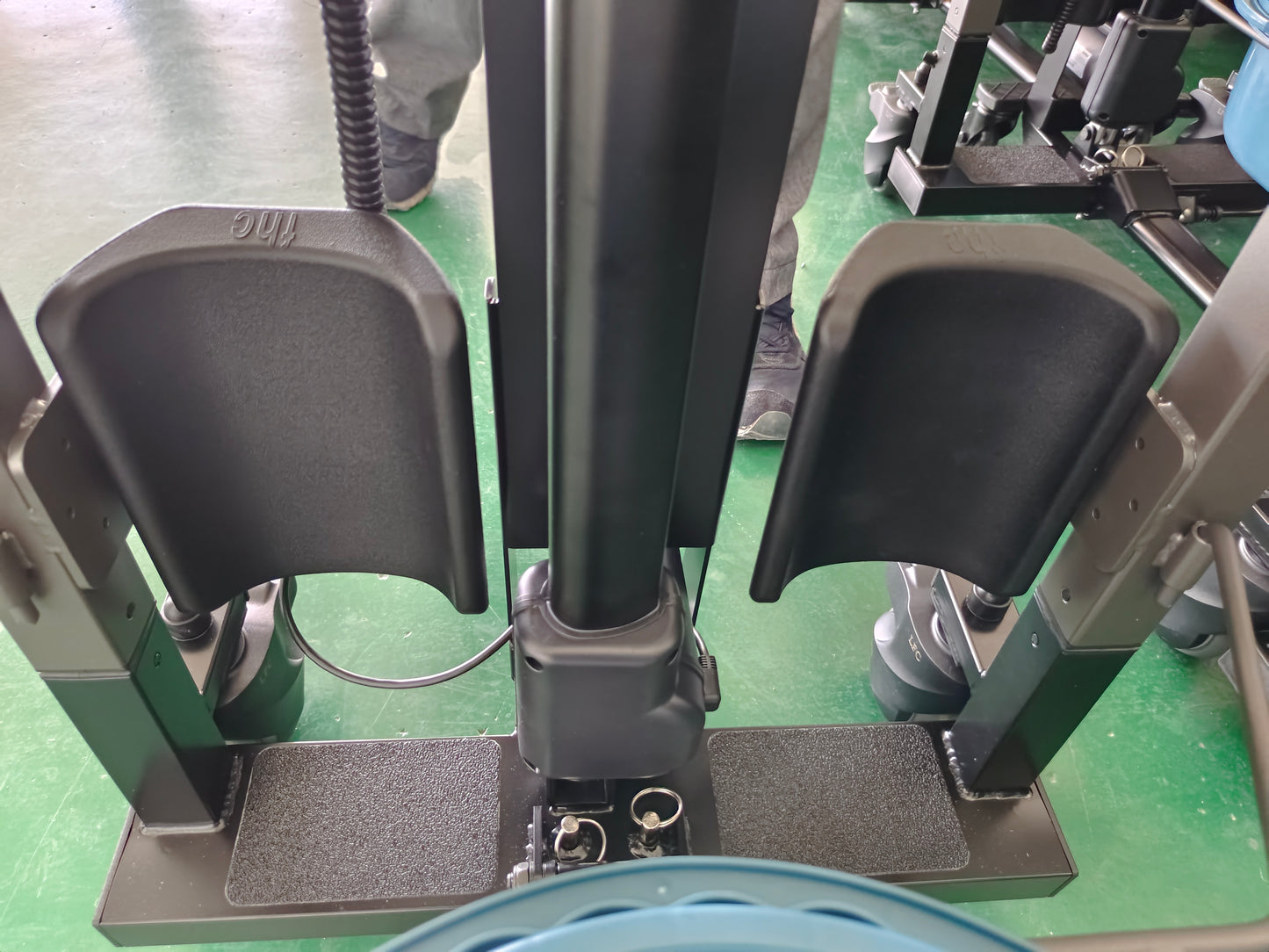

6. With leg support, avoid slipping user legs to the ground.
